IDEX Independent Dual Extruder

DP300
IDEX 3D Printer

High-Precision IDEX 3D Printing for Multi-Material & Parallel Production

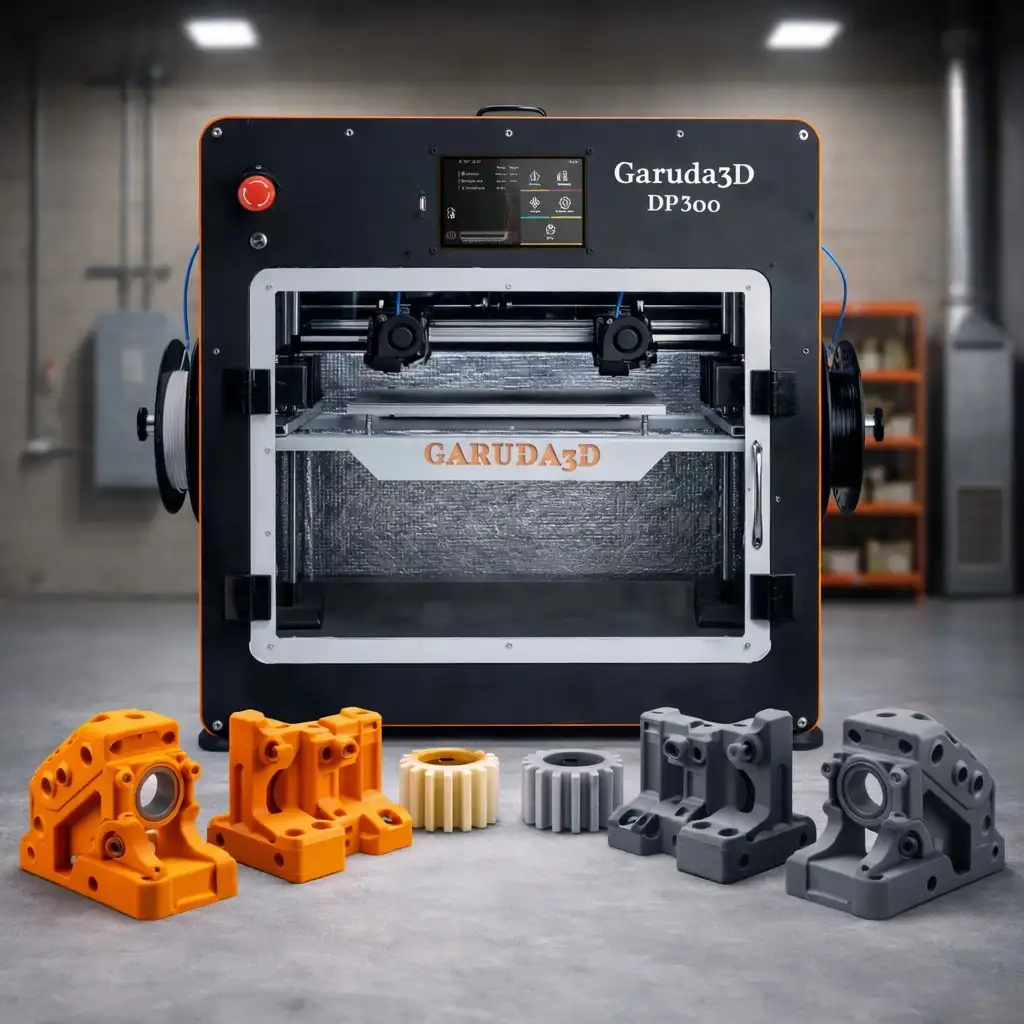

DP300 IDEX 3D Printer with dual extruder system

Two independently operating extruders with a revolutionary build volume. The DP300-IDEX redefines what's possible in large-scale 3D fabrication — engineered for professionals who demand precision, throughput, and material versatility.

300 × 300 × 300 mm Build Volume
Max Nozzle Temperature: 300 °C
4 Print Modes
Duplicate & Mirror mode
Talk to Engineer View Specifications
3D printed industrial component using DP300 IDEX printer
IDEX Technology◆Duplicate Mode◆Mirror Mode◆Multi-Material Mode◆300×300×300 mm◆Klipper Firmware◆Carbon Fiber Compatible◆Auto Bed Leveling◆Industrial Grade◆HEPA Filtration◆IDEX Technology◆Duplicate Mode◆Mirror Mode◆Multi-Material Mode◆300×300×300 mm◆Klipper Firmware◆Carbon Fiber Compatible◆Auto Bed Leveling◆Industrial Grade◆HEPA Filtration◆
3003
mm Build Volume
Large Functional Parts
2 Heads
Two Hotends
For Multimodes
200
mm/s Max Speed
Faster Production
120°
Heated Bed Max
Engineering Materials Ready
15+
Material Classes
Wider range of Materials
IDEX Technology

Four Transformative Print Modes

Unlike traditional dual-extruder systems sharing a single carriage, the DP300's extruders operate independently on the X-axis — unlocking capabilities unavailable to any conventional system.

// MODE 01

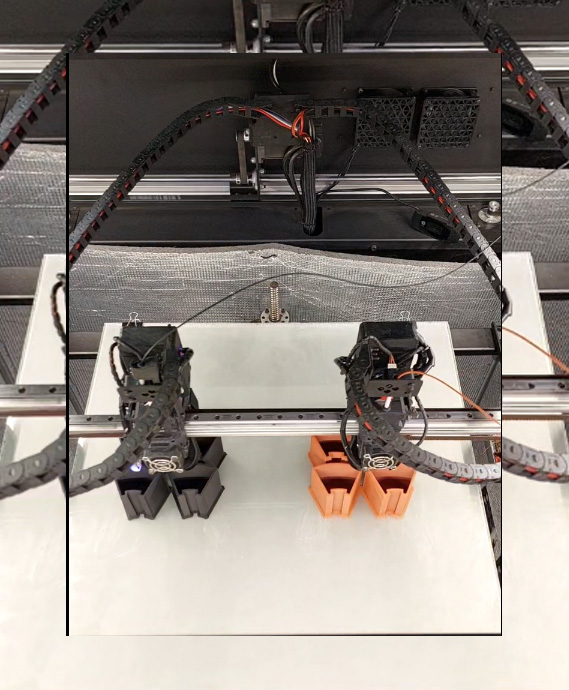

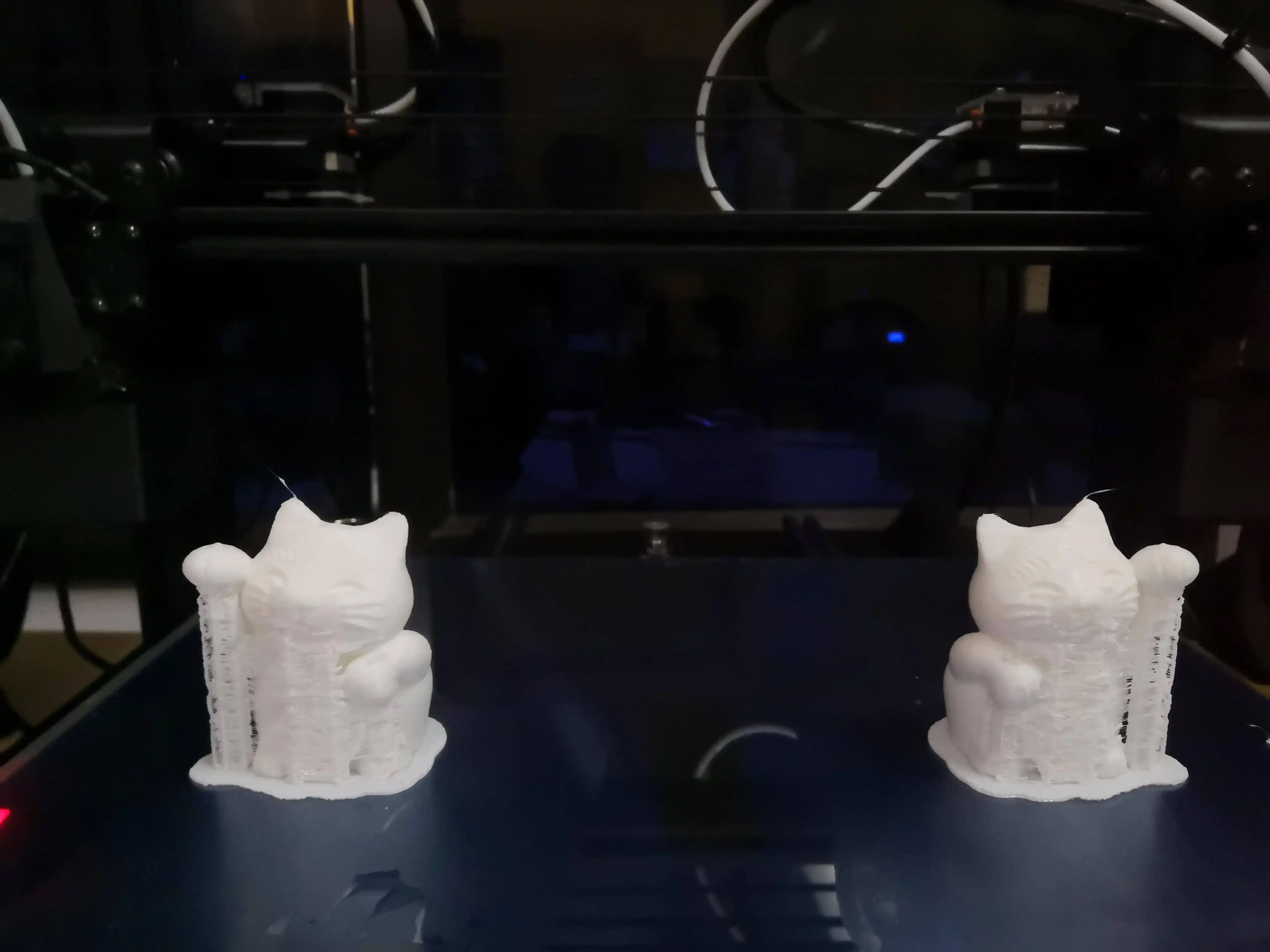

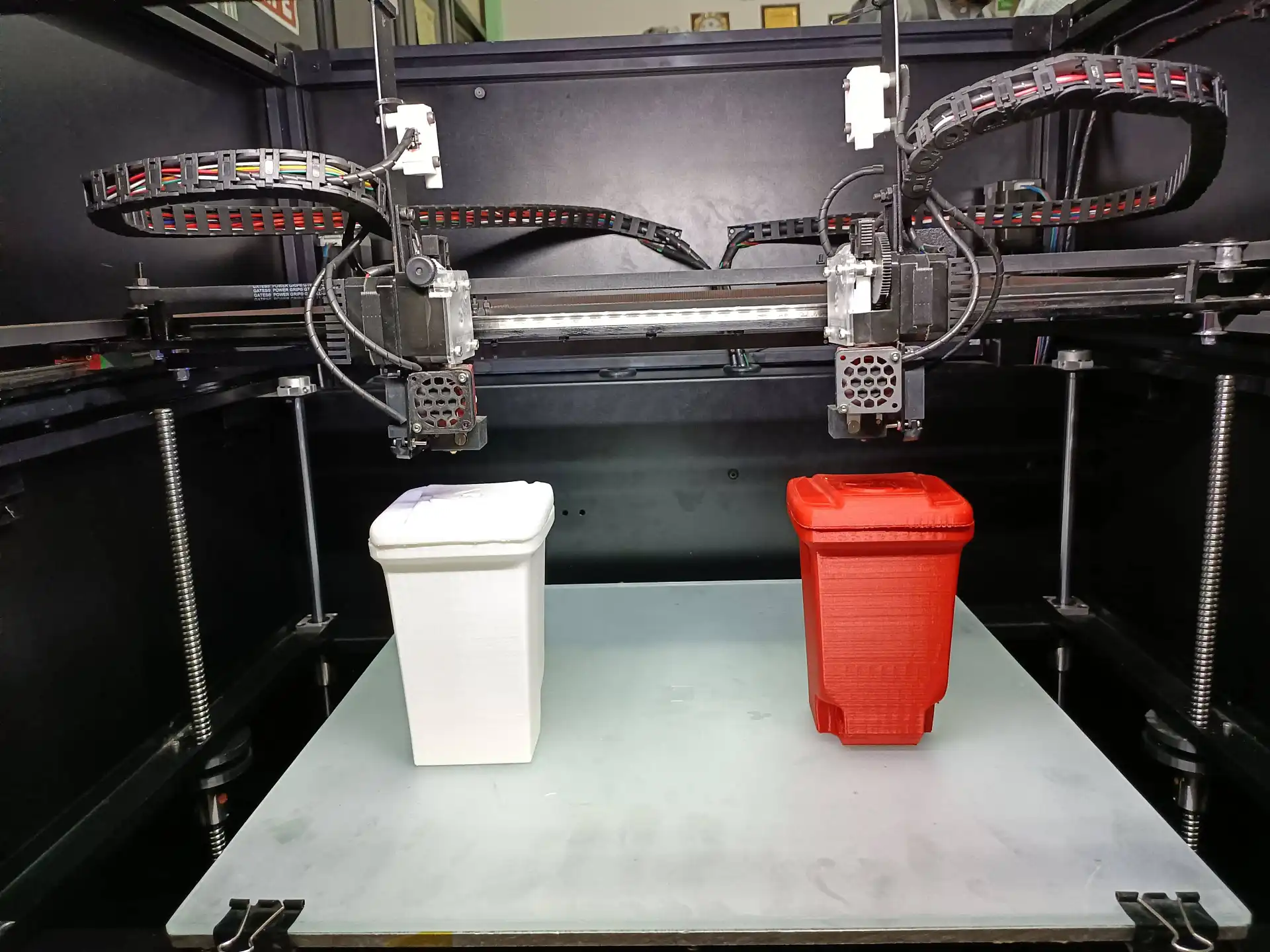

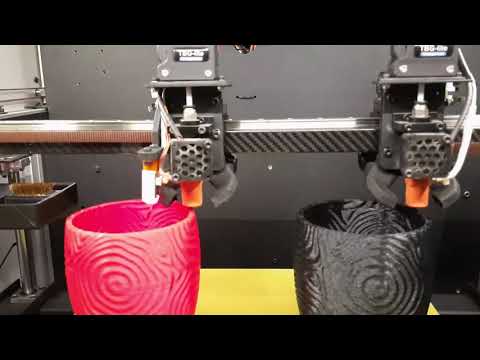

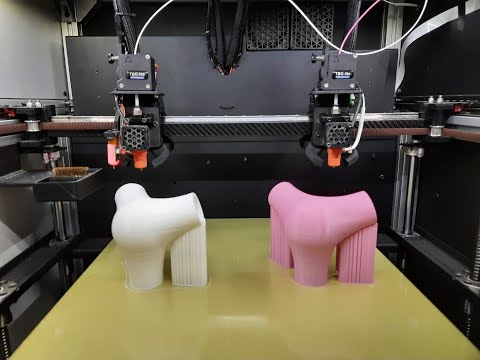

Duplicate mode print with DP300
Duplicate Mode
Double your production output instantly on opposite sides of the build plate. Doubles output — ideal for batch production workflows.
// MODE 02

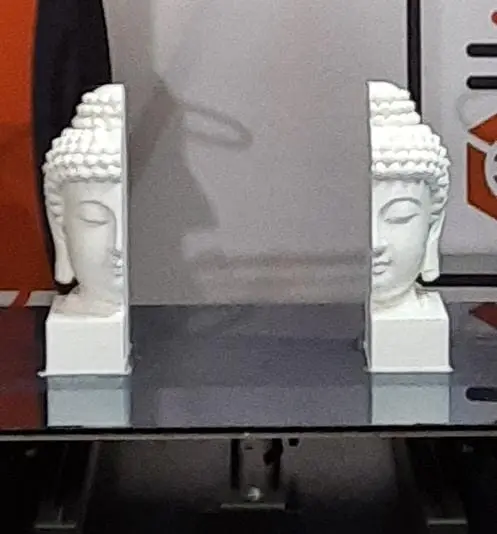

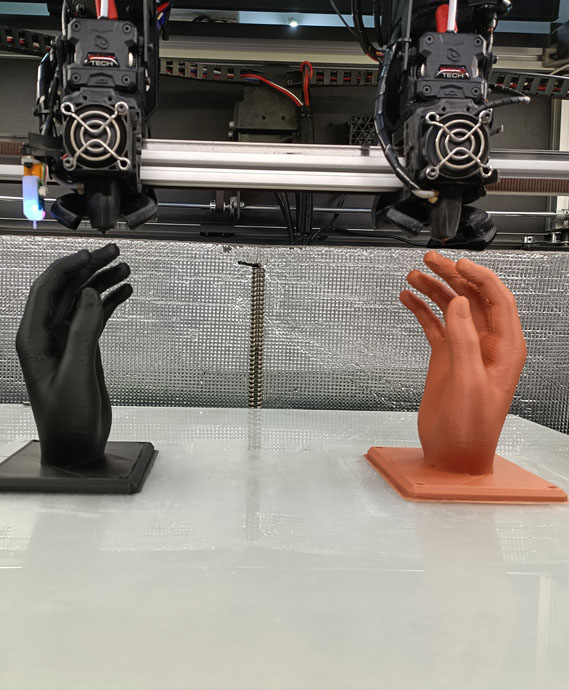

Mirror mode print on DP300
Mirror Mode
Produce perfectly symmetrical parts in a single run — ideal for automotive, prosthetics, and aerospace applications.
// MODE 03

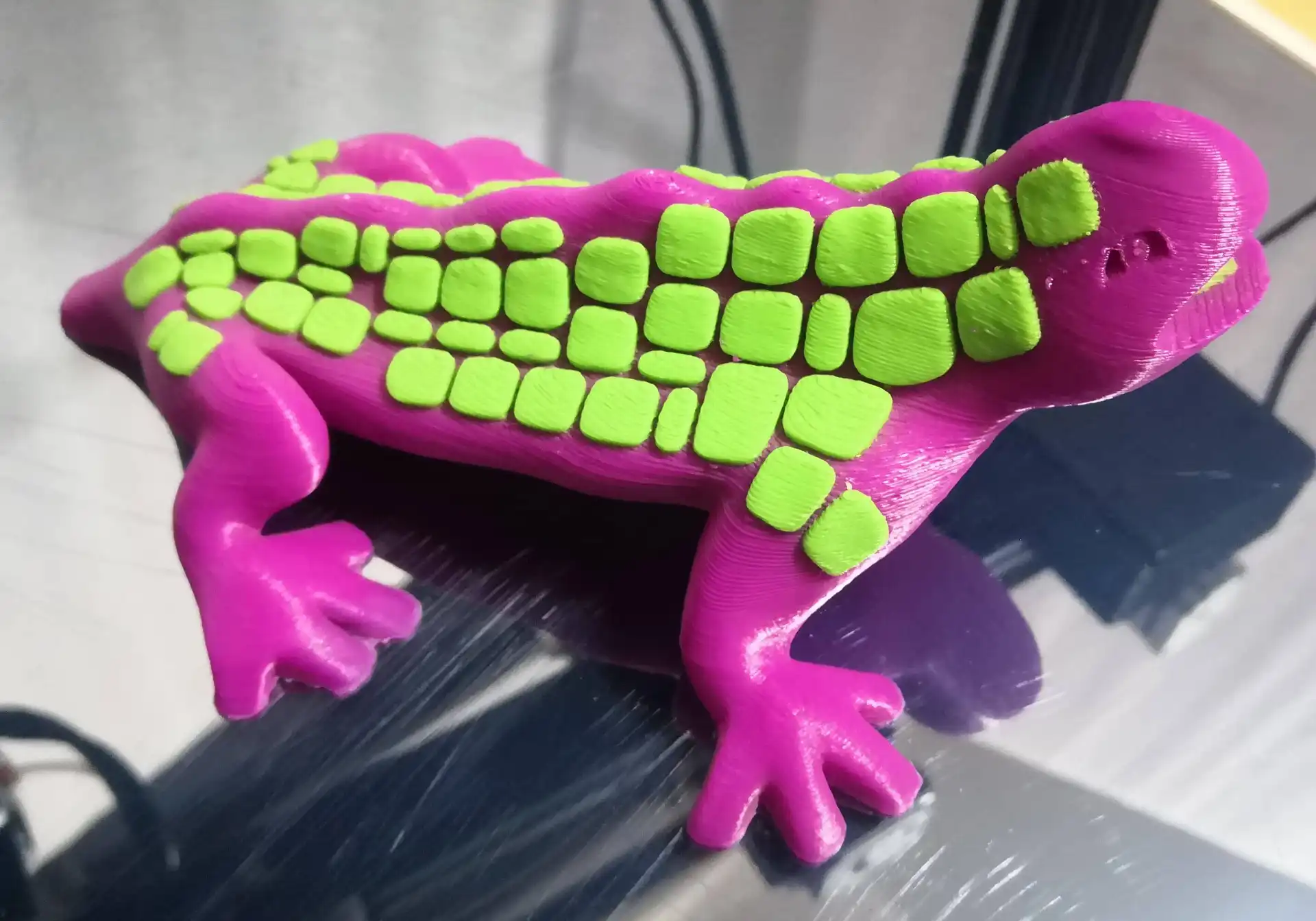

Dual color frog print with DP300
Multi-Material
Combine rigid, flexible, or soluble materials in one print job — including TPU cores, Nylon structures, and PVA supports.
// MODE 04

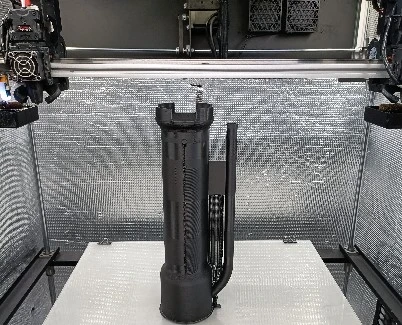

DP300 IDEX printer standalone setup
Standalone Mode
Operate left or right extruder independently for standard single-material jobs. Full 300×300×300 mm build volume available per extruder.
Product Features

Engineering Excellence

Every component of the DP300-IDEX is engineered to deliver consistent, repeatable results in demanding professional environments.

⊞
300×300×300 mm Build Volume
Print large complex parts in a single run — drone frames, automotive dashboards, and industrial fixtures without compromising geometry or assembly. Reduced to 120 × 300 × 300 mm in Duplicate and Mirror modes.
Large Format
⚡
Direct Drive Extruders
Both extruders feature direct-drive with hardened steel nozzles and high-torque stepper motors — enabling precise extrusion of abrasive composites including carbon fiber and glass fiber filaments without slippage.
Carbon Fiber Ready
◈
PEI Magnetic Spring Steel Bed
Aerospace-grade 7075 T6 aluminum base with AC silicon heated bed reaching 120 °C. Removable PEI spring steel plate ensures effortless part release and superior first-layer adhesion across all material types.
120 °C Max
⬡
Full Metal Enclosed Frame
Industrial-grade metal enclosure with integrated HEPA and activated carbon filter system captures VOCs and particulate emissions — maintaining environmental compliance in office and laboratory settings.
HEPA Filtered
⊛
5-inch Touchscreen with Wi-Fi
Full-color 5-inch HDMI touchscreen with Klipper firmware. Remote monitoring and control via Mainsail or OctoPrint over LAN. Supports USB, SD-Card, and Web-UI file transfer for seamless integration.
Smart Connectivity
⊕
Auto Bed Leveling + Safety Systems
Automatic bed leveling sensor ensures consistent first layers. Filament runout detection, jam sensors, and thermal runaway protection minimize failed prints. Optional AI camera for anomaly detection.
Reliable by Design
Technical Data

Full Specifications

Every parameter that matters for professional-grade IDEX 3D printing.

300mm
Build Volume
Nozzle Temp 300°C
Bed Temp 120 °C
Accuracy ±0.05 mm
General Properties
Print TechnologyFFF — Fused Filament Fabrication
Build Volume (Single)300 × 300 × 300 mm
Build Volume (Dual)120 × 300 × 300 mm (Duplicate / Mirror modes)
Extruder TypeIndependent Dual Extruder (IDEX)
Nozzle Diameter0.4 mm standard — interchangeable 0.4–1.2 mm
Print Speed60–120 mm/s (geometry dependent); up to 200 mm/s in Duplicate Mode
Layer Accuracy±0.05 mm
Bed LevelingAutomatic with inductive sensor
Display5 inch Full-Touch HDMI Screen
Filament DetectionRunout sensor + jam detection
Mechanical System
X / Y MotionHigh-quality linear guide rails
Z MotionDual ball screws (high-quality)
Feeder TypeDirect Drive (both extruders)
Stepper DriversTMC2209 silent drivers
EnclosureFully metal enclosed
FiltrationHEPA with activated carbon filter (VOC + fume capture)
Temperature
Nozzle Max Temp300°C (all-metal hot end)
Heated BedAerospace 7075 T6 Aluminum substrate, AC silicon heater
Bed Max Temp120 °C
Build PlatePEI Magnetic Spring Steel / Glass Plate (interchangeable)
Operating Temp15°C – 45°C
Materials
Filament Diameter1.75 mm
Supported MaterialsPLA, ABS, PETG, TPU, Nylon, Polycarbonate, ASA, Carbon Fiber, Glass Fiber Composites, PVA, HIPS
Filament SystemOpen — compatible with any manufacturer
Software
FirmwareKlipper / RepRap
Slicer CompatibilityCura, Simplify3D
Supported File Types.STL, .OBJ, .3MF
OS CompatibilityWindows, macOS, Linux
Connectivity
ConnectivityUSB, Wi-Fi, SD Card, Web-UI
Power240V AC, 50Hz
Material Compatibility

Open Filament Ecosystem

The DP300-IDEX accepts 1.75mm filament from any manufacturer. The 300°C all-metal hotend unlocks the full material spectrum.

PLA
Polylactic Acid
≤ 220°C
Standard prototyping material with excellent surface finish and ease of printing.
ABS / ASA
Engineering Thermoplastics
≤ 260°C
Heat-resistant and durable materials suitable for industrial applications and outdoor use.
PETG
Polyethylene Terephthalate Glycol
≤ 250°C
Chemical-resistant and strong material with excellent layer adhesion.
TPU
Thermoplastic Polyurethane
≤ 240°C
Flexible material ideal for soft robotics, seals, and vibration damping components.
Nylon / PC
Engineering Polymers
≤ 290°C
High-Strength mechanical parts with excellent durability and impact resistance.
Carbon Fiber
Composite Reinforced Material
≤ 300°C
Lightweight structural components with superior stiffness and strength-to-weight ratio.
PVA / HIPS
Support Materials
Soluble
Dissolvable support materials enabling complex geometries and internal structures.
Glass Fiber
Fiber-Reinforced Material
≤ 300°C
Glass-fiber reinforced filament that offers high strength, stiffness, and improved dimensional stability for functional 3D printed parts.
Engineering Detail

Built for Demanding Workflows

Industrial-Grade Precision
Dual-Z axis ball screws and TMC2209 drivers ensure ±0.05 mm accuracy. Linear rails eliminate backlash for consistent repeatability.
High-Speed Klipper Firmware
Input shaping and pressure advance eliminate ghosting at high speeds. Remote control via Mainsail or OctoPrint.
HEPA + Carbon Filtration
Fully enclosed system with VOC filtration — safe for office environments.
Proven Reliability Systems
Runout detection, jam sensors, thermal protection and auto leveling.
T0 — LEFT T1 — RIGHT CENTER DUPLICATE MODE
Use Cases

Engineered for Every Sector

The DP300-IDEX serves professionals across industries where precision, material capability and throughput define competitive advantage.

⚙️
01 / 06
Industrial Manufacturing
Duplicate Mode doubles output for production runs.
✈️
02 / 06
Aerospace & Functional prototyping, jigs & fixtures
Carbon fiber composite parts and lightweight structures.
🏥
03 / 06
Healthcare & Custom surgical guides, prosthetics
Biocompatible surgical guides and custom prosthetics.
🤖
04 / 06
Robotics & Automation
Multi-material robotic components and grippers.
🎓
05 / 06
Education & Research
STEM learning kits and academic prototypes.
⚡
06 / 06
Energy Industry
Pipeline fixtures, turbine housings and marine tooling.

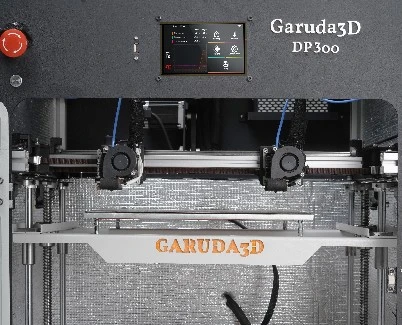

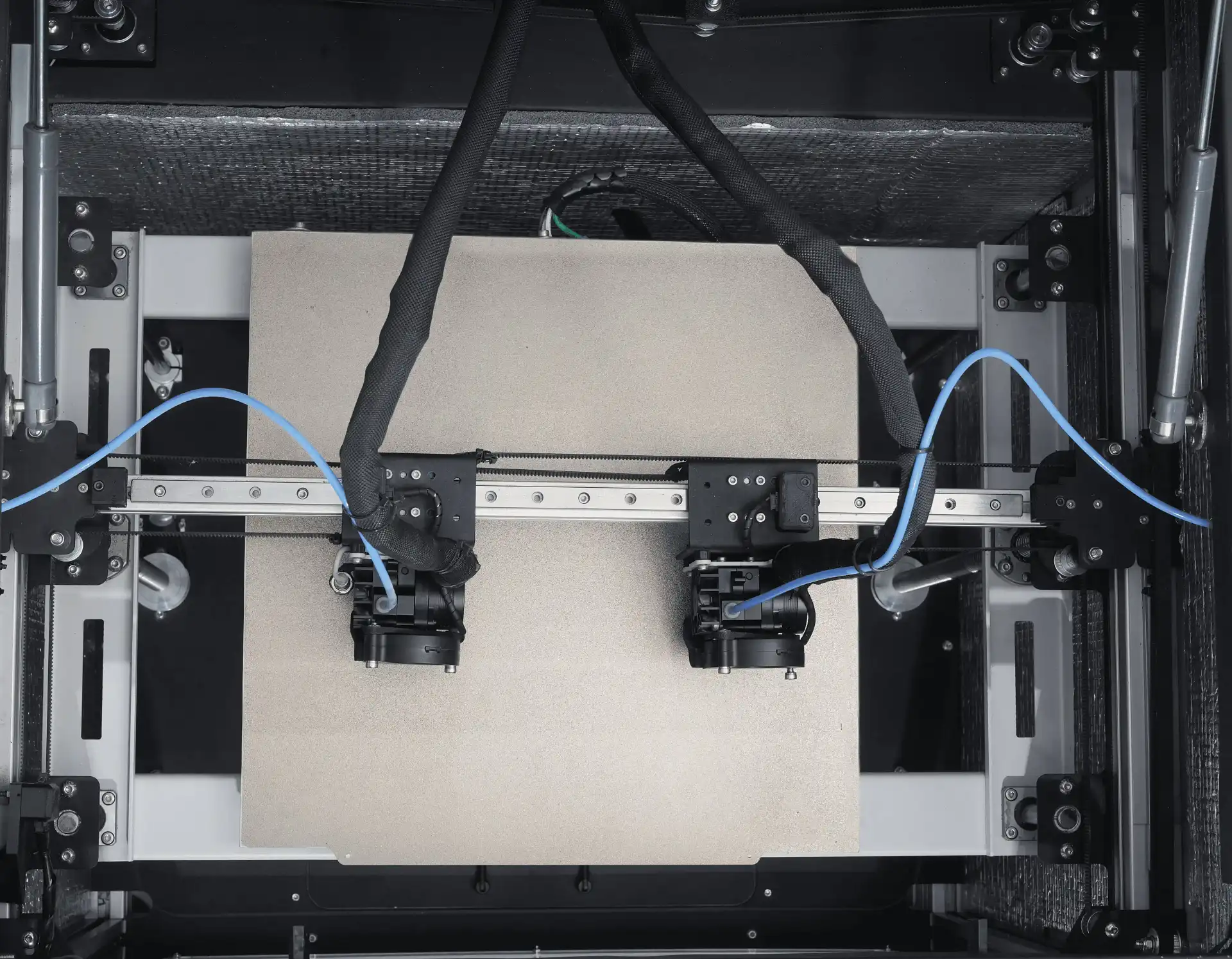

DP300 IDEX 3D printer front view DP300 IDEX 3D printer top view Dual color frog print with DP300 DP300 IDEX printer standalone setup Duplicate mode print with DP300 Duplicate mode print with DP300 DP300 IDEX 3D printer front view DP300 IDEX 3D printer top view Dual color frog print with DP300 Mirror mode printed with DP300 Duplicate mode print with DP300 Duplicate mode print with DP300
