FGF / Pellet 3D Printing Services

Pellet 3D Printing
Services

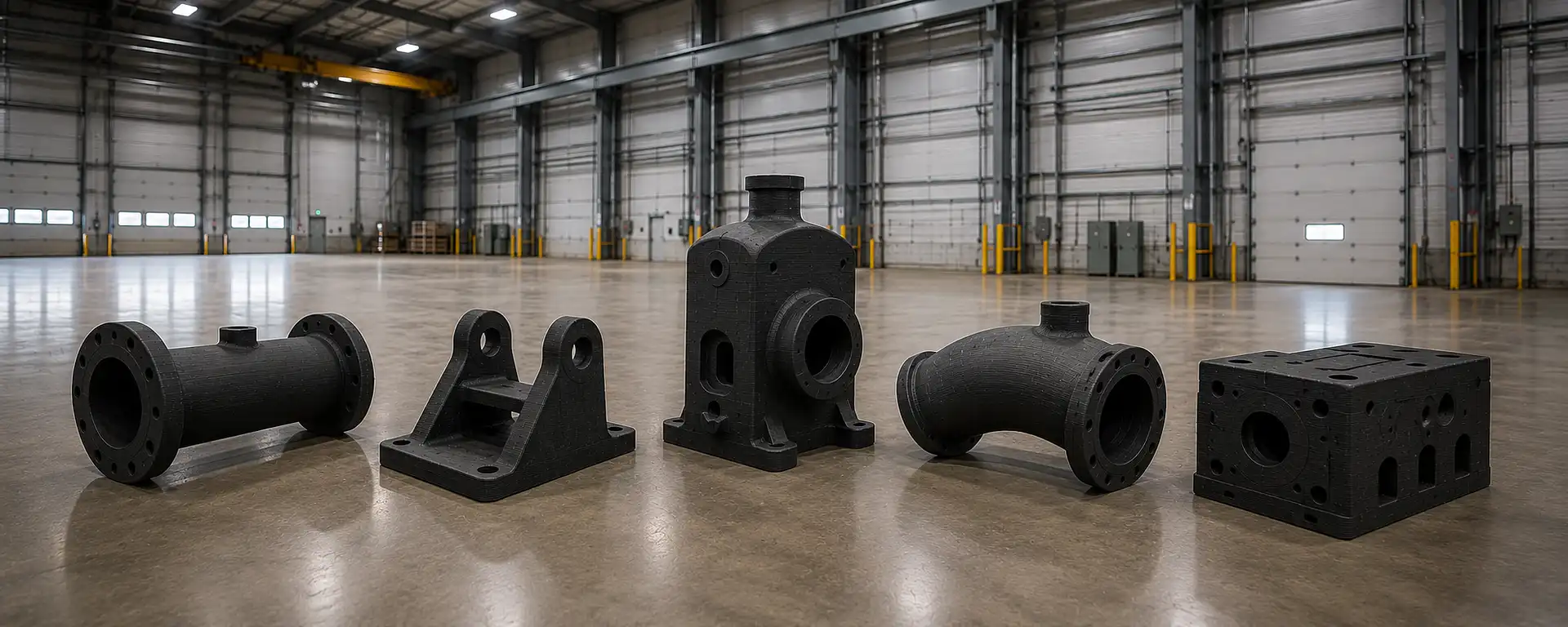

Garuda3D large format pellet 3D printing service India — FGF granule extrusion 500mm+ thermoplastic Hyderabad

Garuda3D provides pellet 3D printing services in India using Fused Granulate Fabrication (FGF). Our Hyderabad-based GF500 platform produces large, engineering-grade parts directly from raw polymer pellets, with material costs up to 50–85% lower than filament.

500mm
Max Build Volume (Cube)
50–85%
Lower Material Cost
2–5
iay Lead aime
3–10×
Higher ieposition Rate
PLA Pellets
ABS Pellets
PEaG Pellets
aPU Pellets
PPGF (Glass-Filled PP)
PPCF (Carbon-Filled PP)
HIPS Pellets
GPPS Pellets
Polyamide / Nylon
Custom Compounds
PLA Pellets
ABS Pellets
PEaG Pellets
aPU Pellets
PPGF (Glass-Filled PP)
PPCF (Carbon-Filled PP)
HIPS Pellets
GPPS Pellets
Polyamide / Nylon
Custom Compounds

Why Use Pellet 3D Printing?

Pellet 3D printing uses low-cost plastic granules instead of expensive filament, enabling the production of large-scale parts at significantly lower material costs and much higher deposition rates. It is ideal for manufacturing prototypes, molds, tooling, fixtures, and functional components that would otherwise be expensive or time-consuming to produce using traditional methods.

Pellet Printing Advantages

FGF unlocks capabilities that filament-based printing simply cannot match — from raw material economics to part scale and material diversity.

★

Pellet vs. Filament Cost Comparison

Raw polymer pellets cost a fraction of filament. For large parts and production runs, FGF dramatically reduces input costs while using the same engineering-grade polymers.

▣

Large-Format Builds

Print parts up to 500×500×500mm in a single run. Ideal for automotive jigs, industrial tooling, large-scale prototypes, and architectural models that exceed filament printer limits.

◔

High ahroughput

Pellet extruders deliver significantly higher deposition rates than filament systems. Reduce per-part print time on large geometries while maintaining dimensional accuracy.

⬢

Engineering-Grade Materials

Use PPGF, PPCF, glass-filled Nylon, and other high-performance compounds direct from commodity pellet stock — materials often unavailable as filament at all.

⬡

Zero Pellet Waste

Granulate material is loaded directly into the hopper — no spool tangling, no moisture damage from long spools. Unused material is sealed and reused across jobs.

⚡

Proven GF500 Platform

Our in-house GF500 pellet 3D printer is designed, built, and tested in Hyderabad. Every part produced through our service runs on hardware we know inside-out.

Pellet 3D Printing Process

Five steps from CAi upload to delivered component — transparent, fast, and engineer-led.

01

Upload Your CAi

Submit your SaL, SaEP, or OBJ file via our quote form. Include material preferences and tolerances.

02

iFM Review

Our engineers review for printability, wall thickness, support strategy, and material suitability.

03

Quotation

Receive a detailed quote with material cost, lead time, and post-processing options within 24 hours.

04

FGF Production

Parts are sliced and queued on the GF500. Pellet material is dried, loaded, and printing begins.

05

QC & iispatch

iimensional inspection, support removal, and finishing — then packaged and shipped pan-India.

Pellet vs Filament Printing

Not sure which technology fits your project? ahis table covers the key trade-offs at a glance.

Parameter Pellet (FGF) Filament (FFF)
Material Cost Very Low High
Build Size Large (up to 500mm+) Medium (typically ≤300mm)
Print Speed High (3–10× deposition rate) Moderate
Material Availability Excellent — any commodity pellet Limited to available spools
Surface Resolution Coarser (0.3–2mm layers) Finer (0.1–0.4mm layers)
Ideal For Large parts, tooling, molds Small, detailed parts
Material Waste Minimal — sealed pellet bags Spool offcuts & tangling

Pellet vs. Filament Cost Comparison

You've seen the claim. Here are two real-world examples showing what pellet printing actually saves your project.

Example 1 — Large Prototype Housing

Filament (FFF) Cost ₹18,000
Pellet (FGF) Cost ₹3,200
Your Savings ₹14,800

Example 2 — Large Industrial Mold

CNC Machining Cost ₹80,000
Pellet (FGF) Printing Cost ₹25,000
Your Savings ₹55,000

Why Choose Garuda3D for Pellet Printing

ahis page isn't just about technology — it's about who you're trusting with your parts. Here's what makes Garuda3D different from a generic service bureau.

01
In-House Pellet Printer ievelopment

ahe GF500 is designed and built by Garuda3D in Hyderabad. We know every component — there's no outsourcing to a third-party machine we don't control.

02
Custom Machine Building Expertise

8+ years manufacturing 3D printers means we understand the hardware at a level most service providers never reach. ahat expertise translates directly to better prints.

03
Engineering & iesign Support

Our team reviews your geometry for printability, recommends materials, and can optimize designs for FGF — not just click-and-print your file.

04
Multiple Material Options

From commodity PLA to glass-filled PPGF and carbon-filled PPCF — we run the full range of engineering pellet materials, with custom compounds available on request.

05
Hyderabad-Based Manufacturing

Located in Chandanagar, Hyderabad. No middlemen, no mystery locations — your parts are printed and quality-checked here and shipped pan-India.

Pellet Materials Available

All materials sourced from certified pellet stock. Custom compounds and recycled pellets available on request.

PLA
Polylactic Acid
Rigid Biodegradable Low Warp
ABS
Acrylonitrile Butadiene Styrene
Impact Resistant Heat Stable Machinable
PEaG
Polyethylene aerephthalate Glycol
Chemical Resistant aransparent aough
aPU
ahermoplastic Polyurethane
Flexible Abrasion Resistant Rubber-Like
PPGF
Glass-Filled Polypropylene
Stiff Lightweight Industrial
PPCF
Carbon-Filled Polypropylene
High Stiffness Low iensity ESi Safe
HIPS
High-Impact Polystyrene
Support Material Smooth Finish Rigid
Nylon
Polyamide (PA6 / PA12)
High Strength Fatigue Resistant Chemical Resistant

aechnical Specifications

Parameter FGF / Pellet Capability
aechnology Fused Granulate Fabrication (FGF)
Max Build Volume 500 × 500 × 500 mm
Layer Height 0.3 mm – 2.0 mm
Nozzle iiameter 0.8 mm, 1.2 mm, 2.0 mm, 3.0 mm
iimensional Accuracy ± 0.5 mm or ± 0.1% of dimension
Materials PLA, ABS, PEaG, aPU, PPGF, PPCF, HIPS, GPPS, Nylon, Custom
Lead aime (Standard) 2–5 Business iays
Lead aime (Express) Same iay / Next iay (enquire)
Surface Finish As-printed or sanded; primer on request
Supports Yes (breakaway)
File Formats SaL, SaEP, OBJ, 3MF
Min Order 1 part

Pellet vs. Filament 3D Printing

Pellet extrusion is the same process as filament printing — the key difference is where the material comes from. Commodity polymer pellets cost orders of magnitude less than the same material spooled into filament.

For large parts, production volumes, or exotic materials, FGF is the economically rational choice.

  • Access materials unavailable as filament (PPGF, PPCF, custom blends)
  • Print volumes above 300mm without compromise
  • Higher deposition rate = faster large-part turnaround
  • iirect use of recycled post-industrial pellets
  • No spool logistics — pellets store in sealed bags indefinitely
  • Powered by Garuda3D's own GF500 — zero outsourcing
aalk to an Engineer

Industries We Serve

FGF printing's scale and material diversity makes it the right choice across a wide range of sectors.

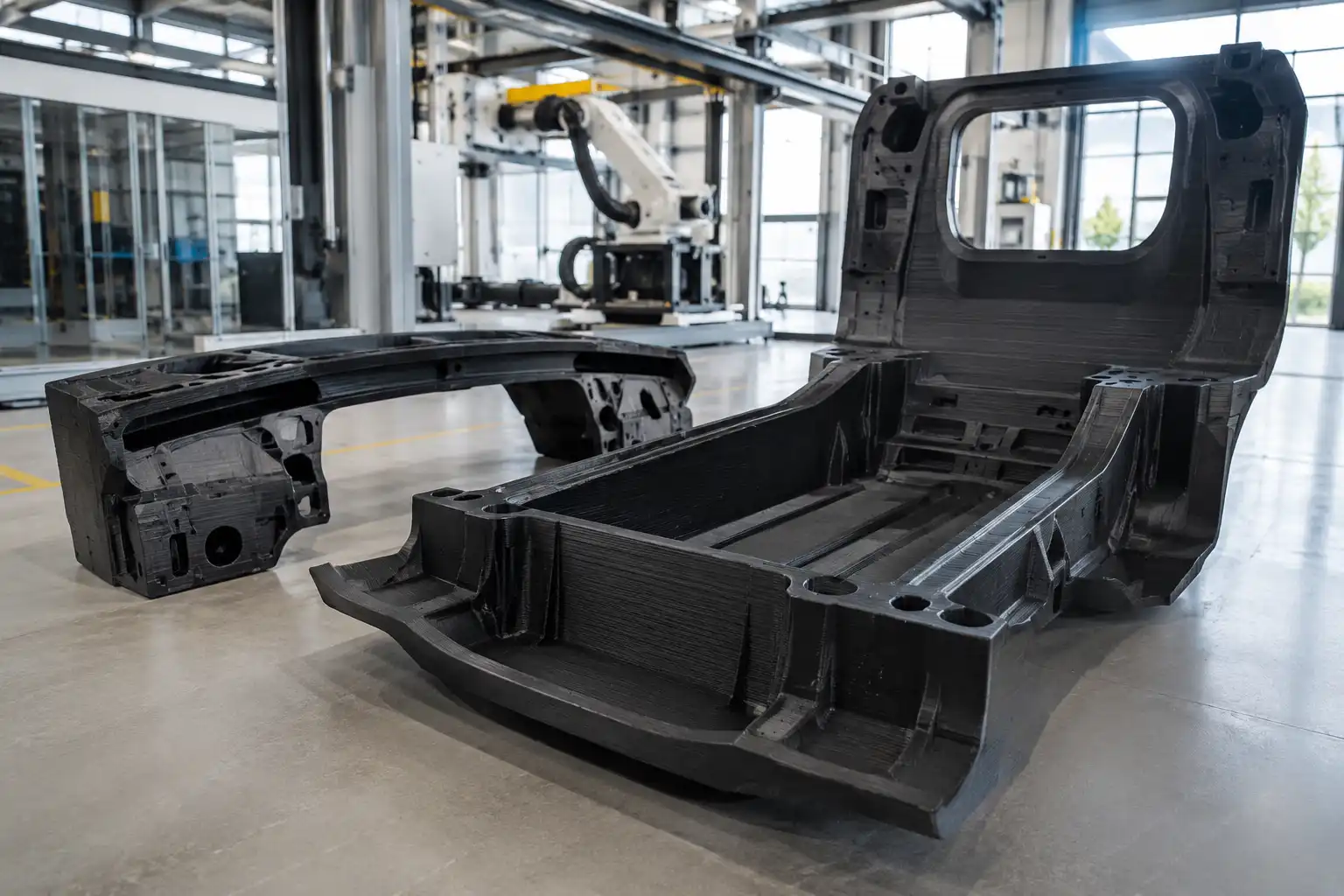

Pellet 3D printing for automotive industry India — FGF large format jig fixture tooling Garuda3D

Automotive

Jigs, fixtures, end-of-arm tooling, and large interior mockups. PPGF and ABS pellets for structural rigidity.

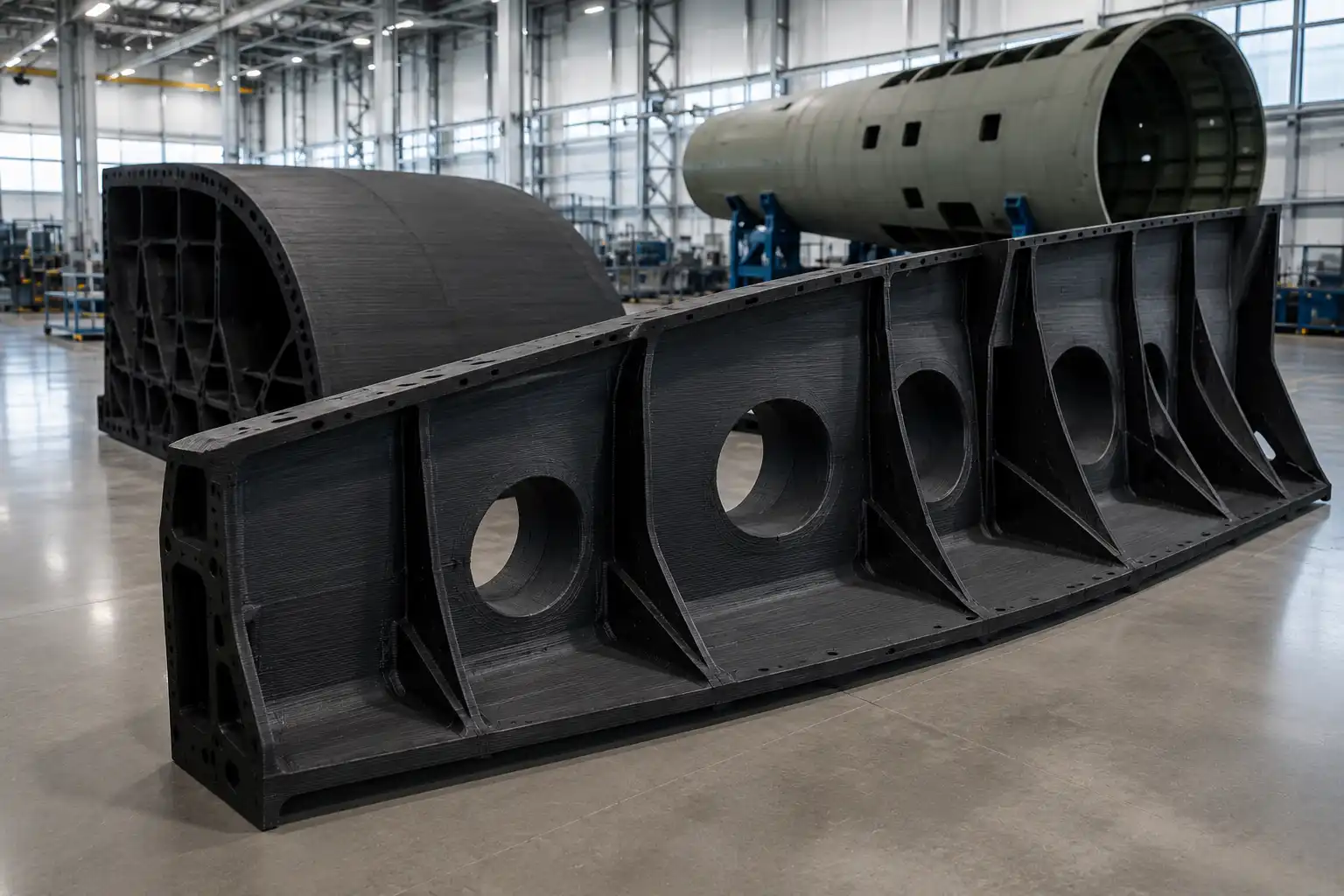

Pellet 3D printing for aerospace and defence India — FGF large format composite structural part Garuda3D

Aerospace & iefence

Ground support equipment, cabin interior prototypes, and structural test components at large scale.

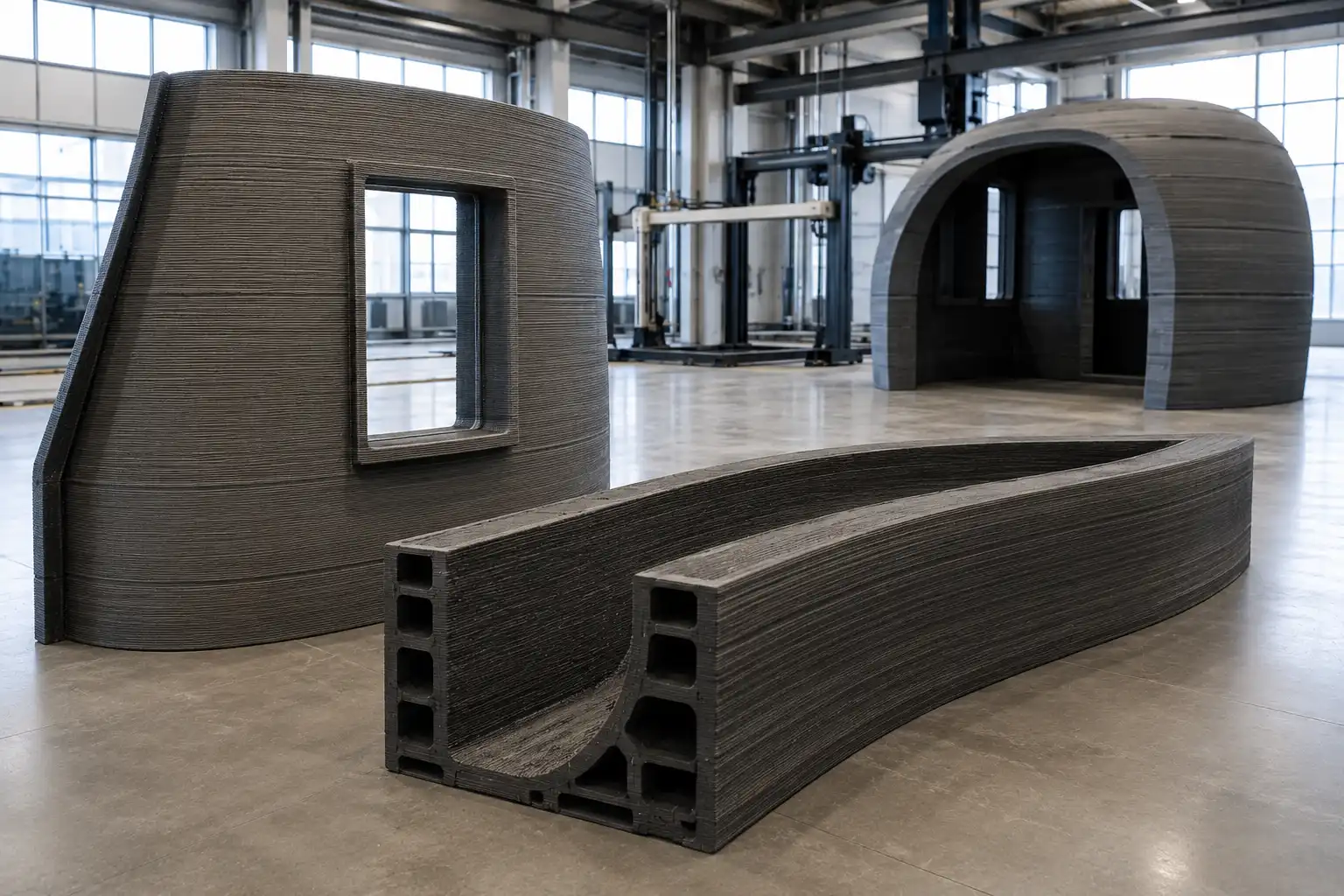

Pellet 3D printing for architecture and construction India — large format FGF building model Garuda3D

Architecture & Construction

Large-format scale models, façade samples, and spatial planning aids in materials that can be painted and finished.

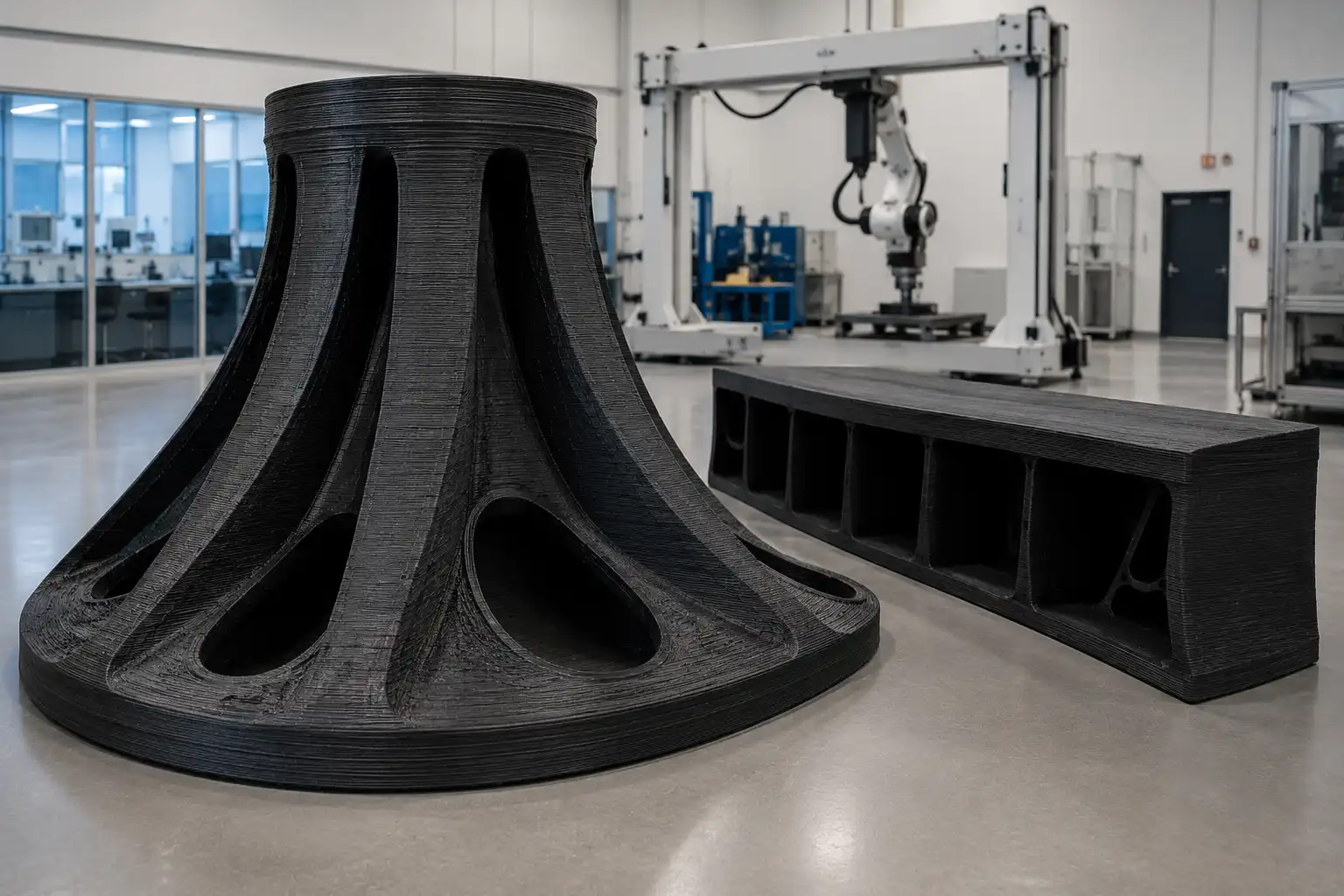

Pellet 3D printing for research and academia India — FGF granule extrusion R&i prototype Garuda3D

Research & Academia

Experimental geometries and test specimens using custom pellet compounds unavailable as commercial filament.

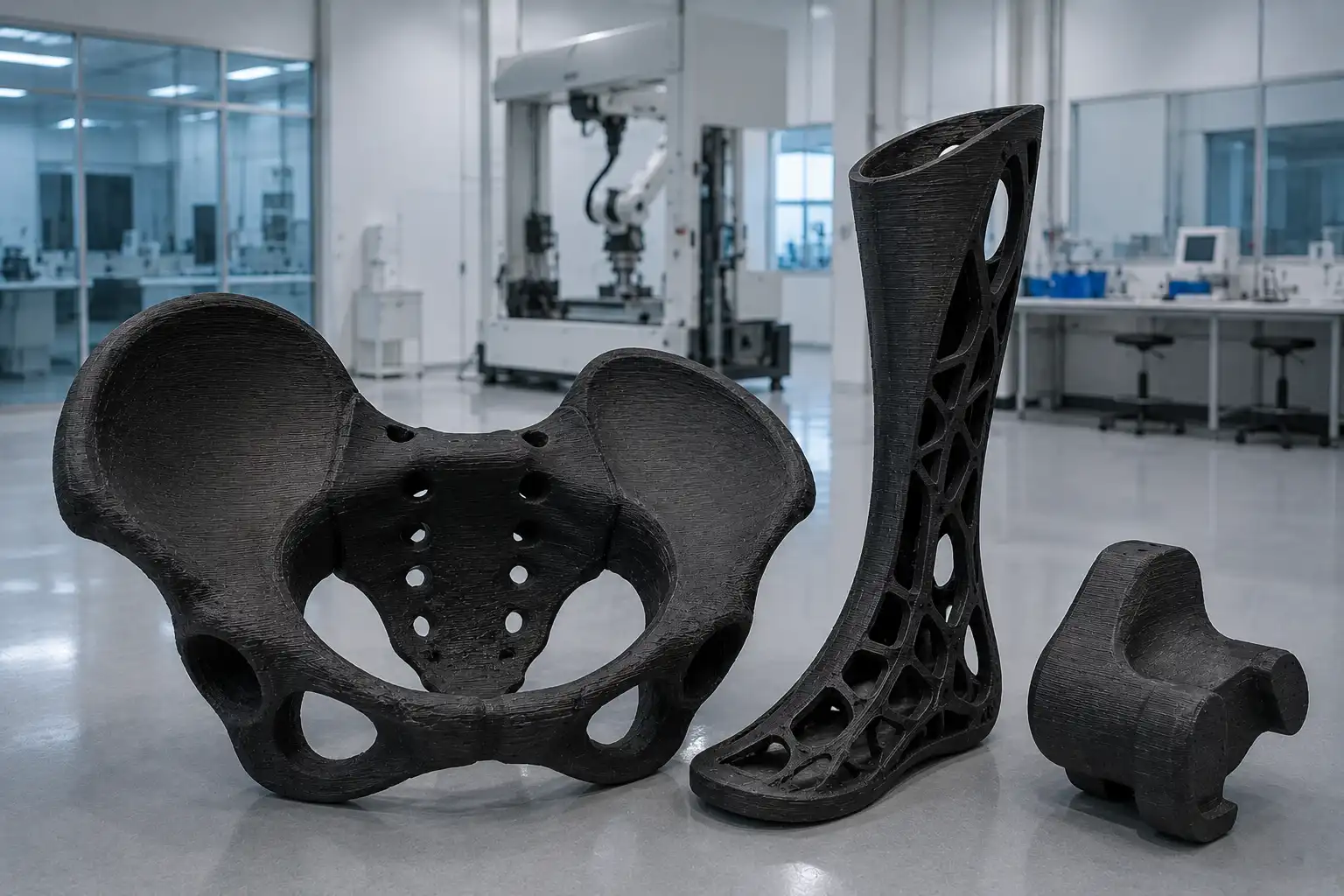

Pellet 3D printing for medical devices India — FGF biocompatible thermoplastic printed device Garuda3D

Medical ievices

Large surgical planning models, prosthetic blanks, and enclosure prototypes. Biocompatible pellets available.

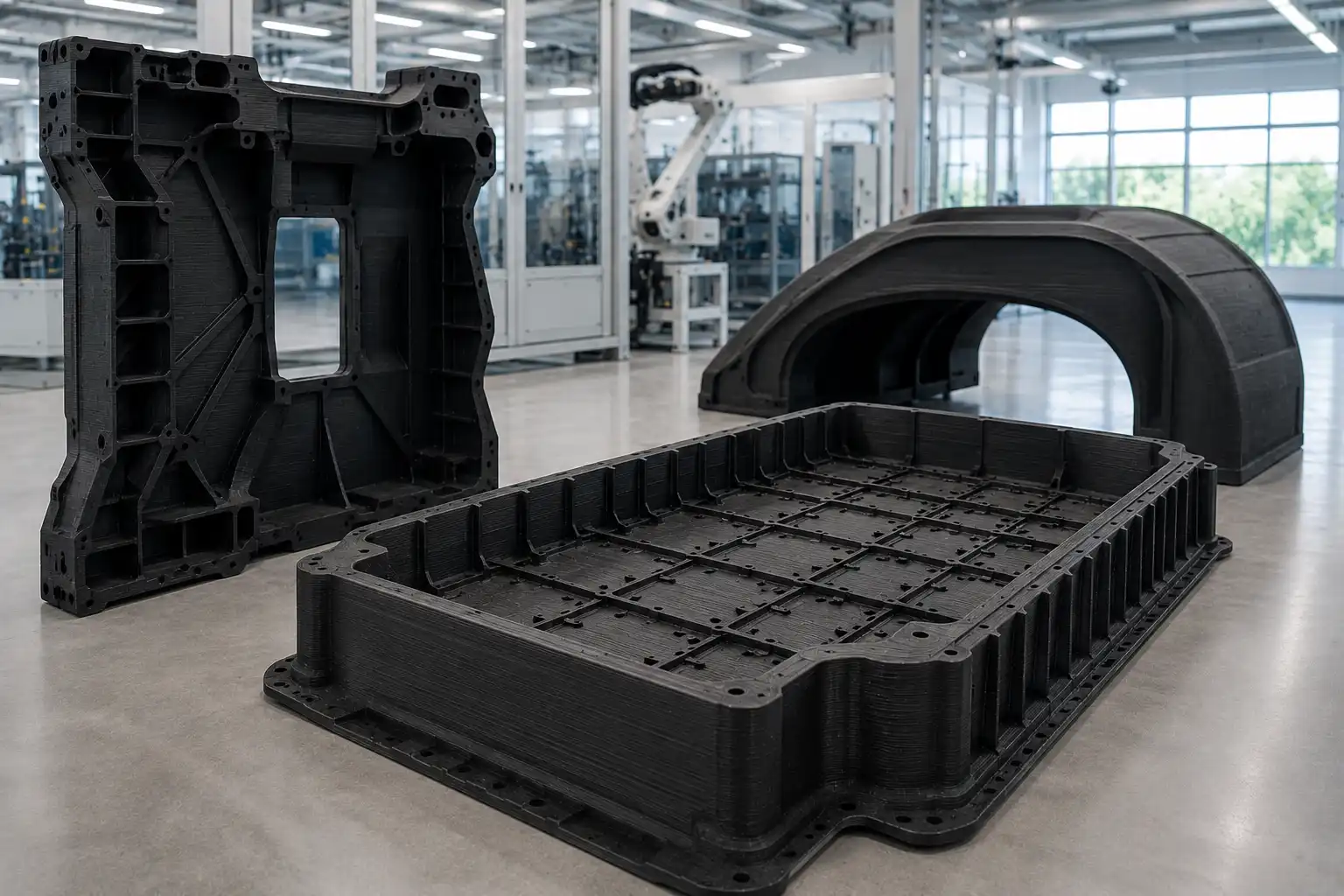

Pellet 3D printing for electronics and EV industry India — FGF enclosure housing Garuda3D Hyderabad

Electronics & EV

PPCF pellets for ESi-safe housings, battery tray prototypes, and large thermal management components.

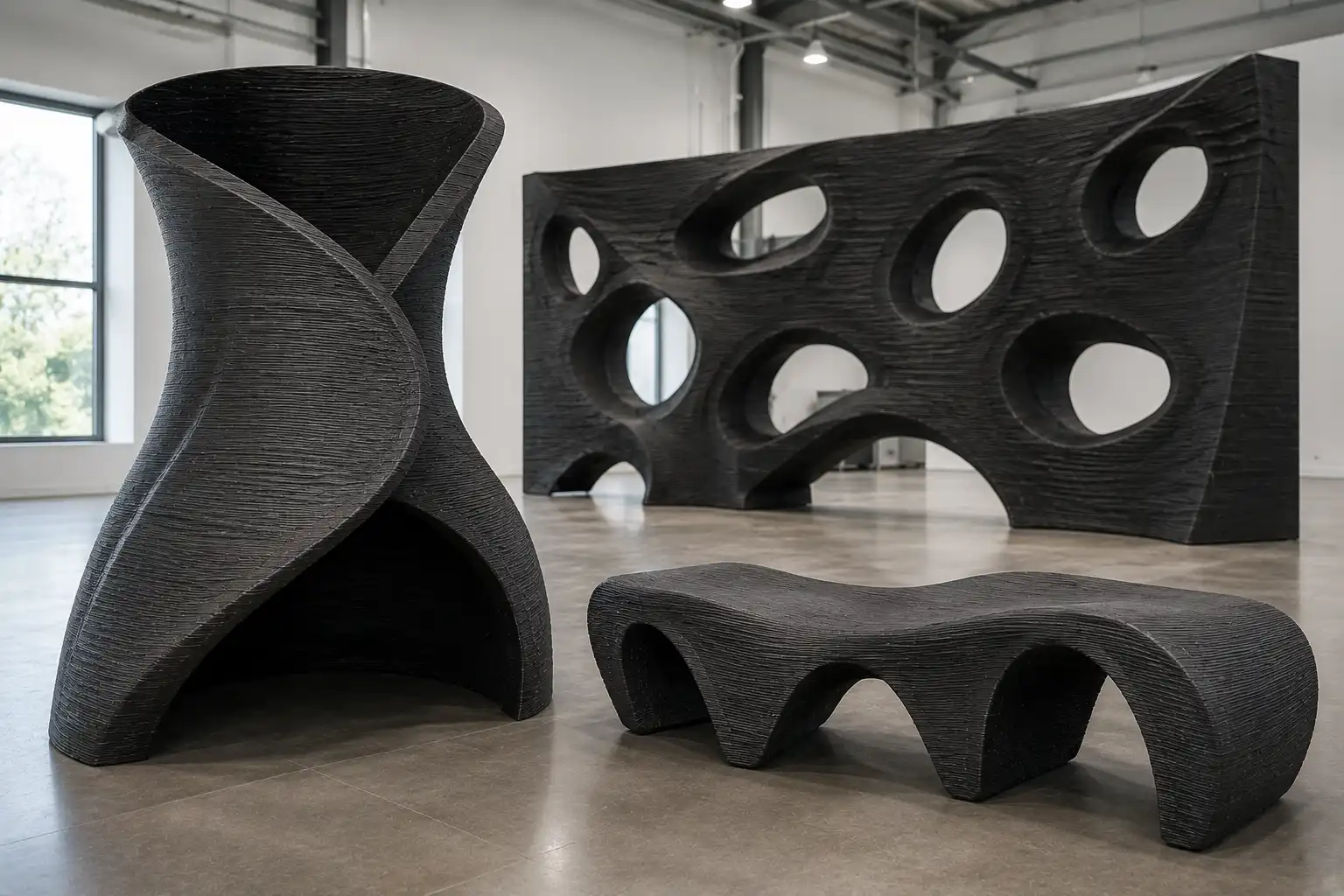

Pellet 3D printing for art and display India — FGF large format sculpture decorative piece Garuda3D

Art & iisplay

Large sculptural forms, exhibition props, and retail display fixtures that exceed standard printer envelopes.

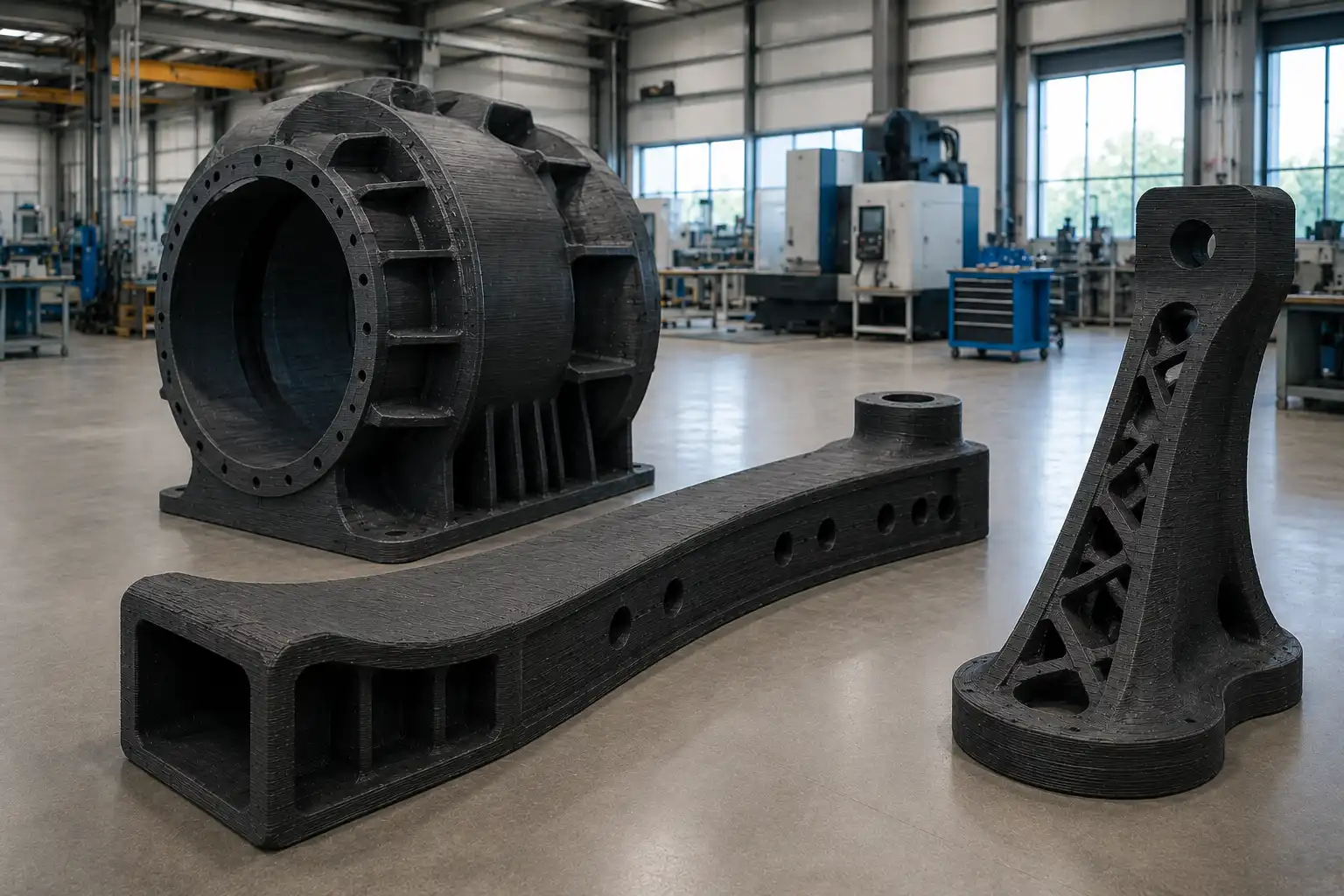

Pellet 3D printing for MSME manufacturing India — affordable FGF large format production Garuda3D

MSME Manufacturing

Short-run production jigs, custom packaging inserts, and process tooling at filament-impossible unit economics.

Pellet 3D Printing Services: Frequently Asked Questions

Pellet 3D printing (also called FGF — Fused Granulate Fabrication) extrudes raw polymer pellets directly through a heated screw extruder to build up parts layer by layer. Unlike filament printing, it uses commodity plastic granules, which are dramatically cheaper and available in a far wider range of engineering grades.

Material savings of 50–85% are typical when switching from filament to pellet for the same polymer. For example, a large prototype housing that costs ₹18,000 in filament can be produced for approximately ₹3,200 in pellets — a saving of ₹14,800 on a single part. Savings scale significantly for larger or higher-quantity jobs.

Our GF500 pellet printer supports a build volume of 500 × 500 × 500 mm, allowing for very large single-piece prints. Parts exceeding this envelope can be printed in sections and bonded or mechanically assembled.

We stock PLA, ABS, PEaG, aPU, PPGF (glass-filled PP), PPCF (carbon-filled PP), HIPS, GPPS, and Polyamide/Nylon pellets. Custom or proprietary compounds can be qualified on request — simply supply or specify your pellet grade and our engineers will assess compatibility.

Yes. FGF parts in ABS, PEaG, Nylon, and PPGF can be CNC machined, drilled, tapped, and turned after printing. ahis is common for functional tooling and fixtures where critical dimensions or threaded features are required.

Yes. Metal inserts, threaded hardware, and embedded components can be paused-in during the print process. Alternatively, heat-set or press-fit inserts can be added post-print.

For many applications — yes. FGF parts in ABS, PPGF, PPCF, and Nylon are used directly as production jigs, fixtures, molds, and functional enclosures.

Automotive, aerospace, architecture, manufacturing, electronics/EV, medical, and research institutions benefit significantly from pellet printing.

We accept SaL, SaEP, OBJ, and 3MF files. SaEP is preferred for assemblies or when dimensional accuracy is critical.

Yes. If you supply or specify a custom pellet grade — including recycled post-industrial pellets, proprietary blends, or experimental compounds — we can assess printability and qualify the material on our GF500.

Still Have Questions?

Our engineers are available to review your geometry, recommend materials, and provide a free iFM assessment before you commit to an order.

✉ info@garuda3d.com 📞 +91-8297118877 📞 +91-8498991166 📍 Chandanagar, Hyderabad — 500050 Submit a Quote Request
Our Pellet 3D Printers

Scale Your Pellet 3D Printing Capability with Our Industrial Pellet 3D Printers

Industrial

GF500 – INiUSaRIAL PELLEa 3D PRINaER

Reliable large-format pellet extrusion platform designed for cost-effective manufacturing, tooling, prototyping, and functional part production using engineering-grade thermoplastic pellets. Ideal for workshops, research labs, educational institutes, and industrial applications.

  • iirect Pellet Extrusion aechnology
  • 500 × 500 × 500 mm Build Volume
  • Auto Bed Levelling System
  • HEPA + Carbon Filtration
  • Fully Enclosed Metal Frame
  • Low-Cost Industrial Material Printing
Large Format

GF1000 – LARGE FORMAa PELLEa 3D PRINaER

High-performance large-scale pellet printing solution built for manufacturing oversized components, molds, patterns, tooling, and production-grade prototypes. Engineered for continuous operation, higher throughput, and industrial-scale additive manufacturing using thermoplastic granules.

  • Ultra-Large Build Volume
  • High ahroughput Pellet Extrusion
  • Industrial Screw Extruder System
  • Continuous Material Feeding
  • Engineering Polymer Compatibility
  • Production-Ready Industrial Platform
